hank dyeing machine factory
loose fiber dyeing machine

Eco-efficiency low liquor ratio normal temperature steam heating loose fiber dyeing machine

TYNL Normal pressure fiber dyeing machine is capable of processing various types of loose fiber, including cashmere, wool, cotton, blends, silk, acrylic, and their blends, offering a wide range of applicability.

  • Model :

    TYNL
  • Payment :

    T/T; LC
  • Product Origin :

    China
  • Shipping Port :

    Shanghai Port, China
wool fiber dyeing machine

Normal temperature loose fiber dyeing machine is widely used in the textile dyeing and printing industry, particularly for delicate dyeing of loose wool or loose fiber products. These products include but are not limited to:
1. Wool Products: such as woolen sweaters, wool scarves, etc.

2. Cashmere Products: Highend textiltles like cashmere sweaters and cashmere scarves.

3. Blended Products: Products made from blended of wool, cashmere, cotton, silk, acrylic, and other fibers.

4. Synthetic Fiber Products: Dyeing processing for loose fiber such as viscose and acrylic.

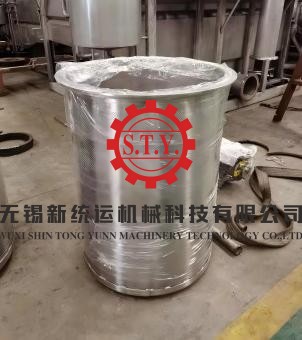

  • carrier of fiber dyeing machine
    Carrier
    High quality stainless steel loose fiber carrier.

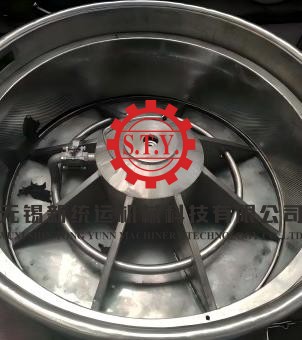

  • press cover of fiber dyeing machine
    Press Cover
    When dyeing loose fiber, need lock the press cover.

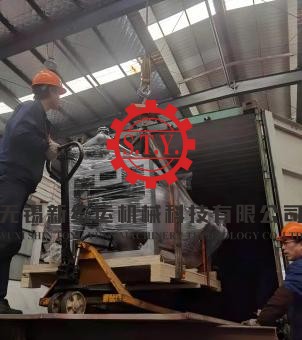

  • packing and loading dyeing machine
    Loading Container
    Professional team, packing machine and loading container.

PRODUCT FEATURE

  • Fiber dyeing machine is equipped with efficient dye liquor circulation system and advanced control technology, ensuring the dye liquor comes into uniform and thorough contact with fiber, get efficient and uniform dyeing result.
  • Simple operation of wool fiber dyeing machine, computer control system precisely regulate various parameters dyring dyeing process, reduceing erros and inconveniences associtated with manual operations.
  • Extebded adapters and adjustable spacer(load pressing device), provide a wide range of load adjustment and convinient, safe loading and unloading.
  • All parts contact with the dye liquor are made of corrosion-resistant stainless steel, enhancing the durability of the machine.
  • Loose fiber dyeing machine icorporate multiple finishing processing such as scouring, bleaching, softening, dyeing etc.to be completed in one machine, improving production efficiency and flexibility.



PRODUCT STRUCTURE

  • Dyestuff tank (with mixing system)
  • Axial flow pump with mechanical seal
  • Both direct heating and indirect heating
  • With stainless steel fiber carrier(lifting type), lifting frame and adjustable spacer



OPTIONAL CONFIGURATION

  • Charging pump
  • Auto/ semi auto system
  • Main pump with frequency inverter



SPECIFICATION

TYNL NORMAL TEMPERATURE LOOSE FIBER DYEING MACHINE
Model Capacity(KG) Power(KW)
TYNL-5 5 1.1
TYNL-10 10 1.5
TYNL-25 25 2.2
TYNL-50 50 2.2
TYNL-100 100 4
TYNL-175 175 5.5
TYNL-275 275 7.5
TYNL-500 500 15
TYNL-1000 1000 30
