Hank Yarn Dyeing Machine(NT)

You are in:

/ Home /Hank Yarn Dyeing Machine(NT) /Automatic normal temperature pressure spray skein hank yarn dyeing machine
automatic spray hank yarn dyeing machine

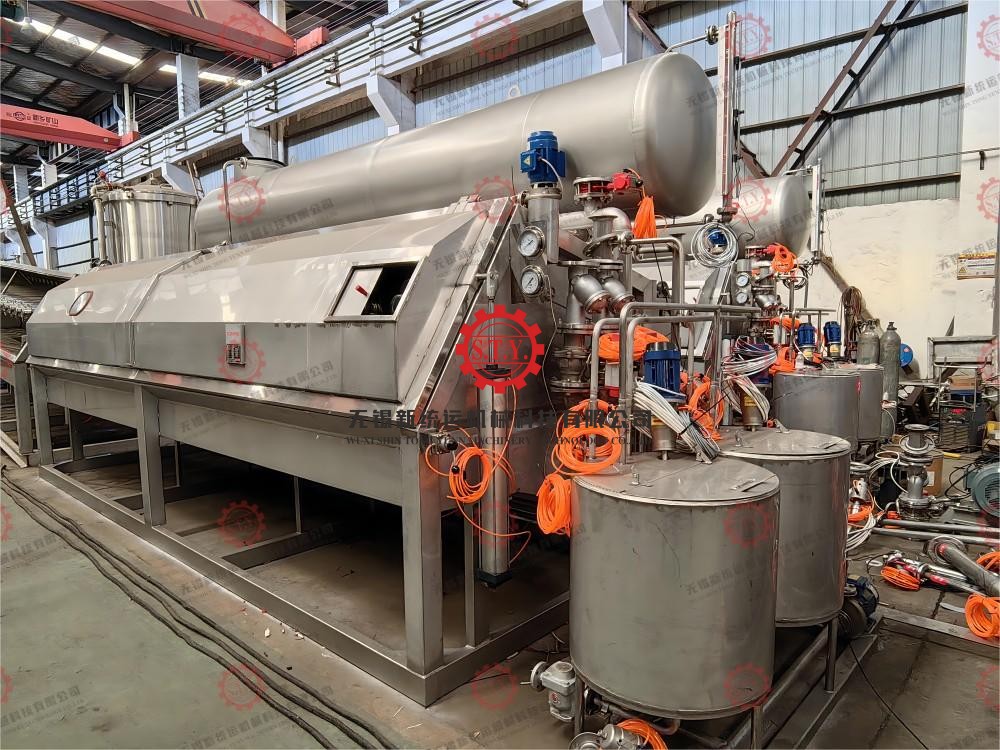

Automatic normal temperature pressure spray skein hank yarn dyeing machine

SH series normal pressure hank yarn dyeing machine plays a vital role in the textile industry, particularly in situations where precise control of dyeing temperature is required to avoid overheating damage to the yarn or uneven coloring.

  • Model :

    SH

  • Payment :

    T/T; LC

  • Product Origin :

    China

  • Shipping Port :

    Shanghai Port, China
Inquiry now

automatic hank yarn dyeing machine

  • normal pressure hank yarn dyeing machine

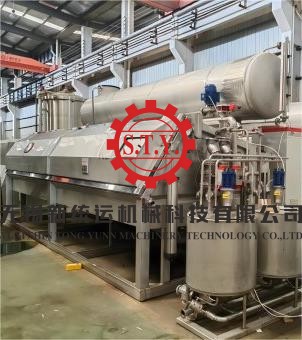

    Testing Before Shipment
    Testing hank yarn dyeing machine before shipment, ensure running in good condition at cilent's plant.
  • #

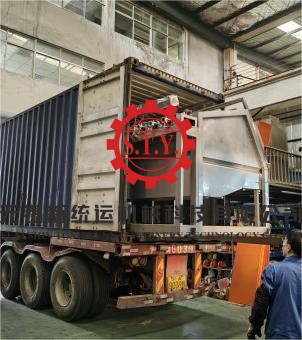

    Export & Loading
    Professional team loading container, in case getting damage during transportation.
  • #

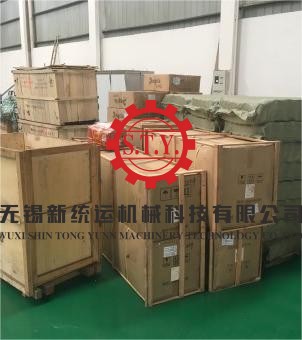

    Packing
    Sea freight standard package, plywood box, packing electrical cabinet, spare parts and so on.

PRODUCT FEATURE

  • Normal temperature skein dyeing machine is widely applied in the dyeing of various fibers, including cotton, linen, silk, wool, synthetic etc.
  • Well-designed structure of spray hank yarn dyeing machine and circulation system, ensuring even distribution of dyes throughout the yarn, reducing color differences and blotchy patterns, and enhancing dyeing quality.
  • Automatic hank dyeing machine is equipped advanced auto control system, precisely manage critical parameters such as dyeing time, dye concentration, dyestuff entry rate and so on. Enabling intelligent production.
  • This hank yarn dyeing machine is equipped preparatory tank( water capacity of preparatory tank: water of main tank=1:1), realize water recycling, further minimizing production costs and environmental pollution.



STANDARD STRUCTURE

  • Main body of dyeing machine is high quality corrosion resistant stainless steel
  • Stainless steel spray pipe
  • With transmission device for spray pipe
  • Large flow water pump
  • Dyestuff tank : mixing, heating, backflow, feeding and cleaning
  • Internal type heating exchanger
  • Water level indicator
  • Hank yarn load in and out device; cleaning spray pipe tool



OPTIONAL CONFIGURATION

  • Auto/Semi Auto control system
  • Dosing system
  • The second inflow and the second drain
  • Dyestuff tank with auto system
  • Second dyestuff tank
  • Preparatory tank
  • The length of spray pipe: L=1200mm/1500mm/2000mm



SPECIFICATION

SH SERIES NORMAL TEMPERATURE NORMAL PRESSURE HANK YARN DYEING MACHINE
MODEL CAPACITY(KG) NO. OF SPRAY PIPE MAIN POWER(KW)
SH-1-65 3 1 1.1
SH-2-65 7 2 1.1
SH-2-120 14 2 1.5
SH-4-120 28 4 3
SH-6-120 42 6 4
SH-10-150 100 10 5.5
SH-20-150 200 20 11
SH-30-150 300 30 18.5
SH-40-150 400 40 22
