hank dyeing machine factory
normal temperature hank yarn dyeing machine

China normal pressure hank yarn spray dyeing machine semi automatic

SH-5-200 series normal temperature hank yarn dyeing machine is designed as larger capacity than SH-5-150. The spray pipe length is two meter. This model normal pressure skein hank yarn dyeing machine can load 100KG per batch with lower liquor ratio.

  • Model :

    SH-5-200
  • Payment :

    LC;T/T
  • Product Origin :

    China
  • Shipping Port :

    Shanghai Port, China

normal temperature hank yarn dyeing machine

PRODUCT FEATURE

  • Normal temperature normal pressure hank yarn dyeing machine can be used for 100% wool, 100% acrylic, mercerized cotton, viscose, angora, cashmere etc.
  • Spray type skein dyeing machine is a specially designed machine used for dyeing, washing and finishing yarns.
  • Specially designed water pump that increase the covitation resistance and provide high flow rate with lower energy consumption.
  • Compared with other type hank yarn dyeing machine, saving raw material, energy and water(liquor ratio 1:6-7).



STANDARD STRUCTURE

  • Main body of dyeing machine is high quality corrosion resistant stainless steel

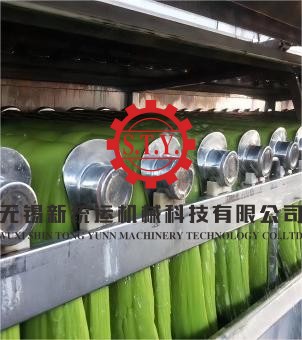

  • Stainless steel spray pipe
  • With transmission device for spray pipe
  • Large flow water pump
  • Dyestuff tank : mixing, heating, backflow, feeding and cleaning
  • Internal type heating exchanger
  • Water level indicator
  • Hank yarn load in and out device; cleaning spray pipe tool



OPTIONAL CONFIGURATION

  • Auto/Semi Auto control system
  • Dosing system
  • The second inflow and the second drain
  • Dyestuff tank with auto system
  • The length of spray pipe: L=1200mm/1500mm/2000mm



SPECIFICATION

SH SERIES NORMAL TEMPERATURE NORMAL PRESSURE HANK YARN DYEING MACHINE
MODEL CAPACITY(KG) NO. OF SPRAY PIPE MAIN POWER(KW)
SH-1-65 3 1 1.1
SH-2-65 7 2 1.1
SH-2-120 14 2 1.5
SH-4-120 28 4 3
SH-6-120 42 6 4
SH-10-150 100 10 5.5
SH-20-150 200 20 11
SH-30-150 300 30 18.5
SH-40-150 400 40 22
