Two arms normal temperature hank yarn dyeing machine is suitable for using after finishing lab dyeing. The dyeing result is almost same with yarn which is dyeing in big capacity dyeing machine.
Model :
SH-2-65/SH-2-120Payment :
T/T;LCProduct Origin :
ChinaShipping Port :
Shanghai Port, China
PRODUCT FEATURE

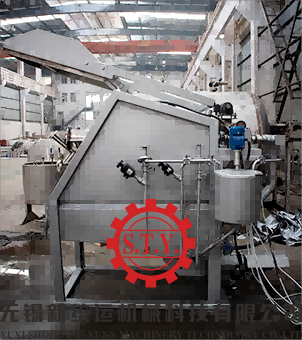

Model SH-2 skein hank dyeing machine is suitable for using after finish lab dyeing or dyeing small quantity hank yarn.
Normal pressure hank yarn dyeing machine is suitable for dyeing, bleaching, washing, befroe and after treatment process, refining and so on.
It is matched the lower energy and high-flow water pump, ensure the water quantity is stable during dyeing processing.
Most advanced designed spray pipe for skein dyeing machine, reduce the cost of hank yarn.
STANDARD STRUCTURE
OPTIONAL CONFIGURATION
SPECIFICATION
| MODEL | CAPACITY(KG) | NO. OF SPRAY PIPE | MAIN POWER(KW) |
| SH-1-65 | 3 | 1 | 1.1 |
| SH-2-65 | 7 | 2 | 1.1 |
| SH-2-120 | 14 | 2 | 1.5 |
| SH-4-120 | 28 | 4 | 3 |
| SH-6-120 | 42 | 6 | 4 |
| SH-10-150 | 100 | 10 | 5.5 |
| SH-20-150 | 200 | 20 | 11 |
| SH-30-150 | 300 | 30 | 18.5 |
| SH-40-150 | 400 | 40 | 22 |
