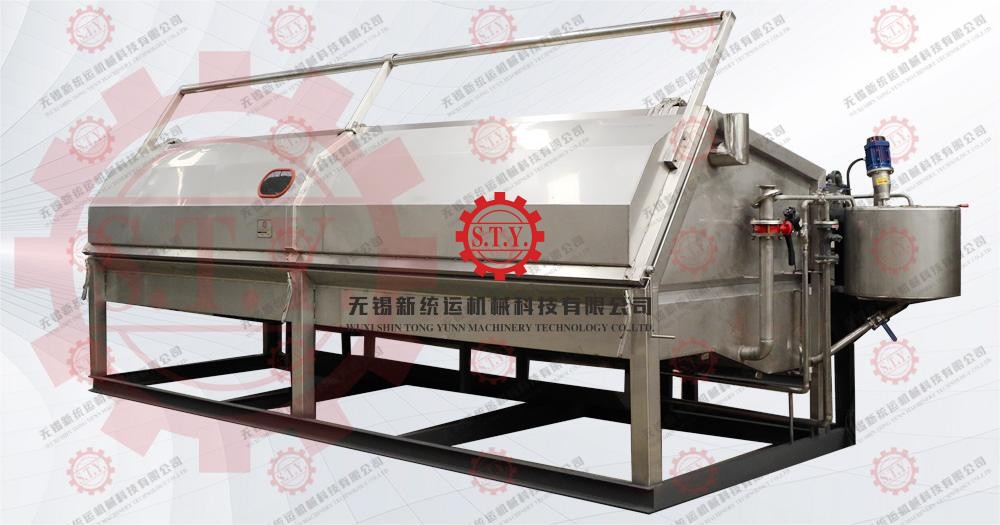

Spray hank yarn cotton dyeing machine normal temperature textile machinery

Spray type hank yarn dyeing machine is suitable for dyeing single filament, single-strand fine yarn, man-made filament, silkand mercerized cotton yarn, etc.

  • Model :

    SH-20-150

  • Payment :

    LC;T/T

  • Product Origin :

    China

  • Shipping Port :

    Shanghai Port, China
Inquiry now

cotton yarn dyeing machine



PRODUCT FEATURES

  • SH series normal temperature hank yarn dyeing machine is suitable dyeing single filament, single-strand fine yarn, man-made filament, silkand mercerized cotton yarn, etc.
  • It is capable of bleaching, refining, dyeing, washing, after/before-treatment process and so on.
  • Hank dyeing machine is euiqpped with special design pump(lower energy, high-flow water pump).
  • Desigh working temperature: 98℃
  • Max.heating rate : around 5℃/min (according the steam pressure 6KG/cm2)
  • Cooling rate: around 4℃/min (accoding the cooling water presure 3KG/cm2)



STANDARD STRUCTURE

  • Main body for hank yarn dyeing machine is high quality stainless steel
  • Material of dyeing machine's arm is stainless steel

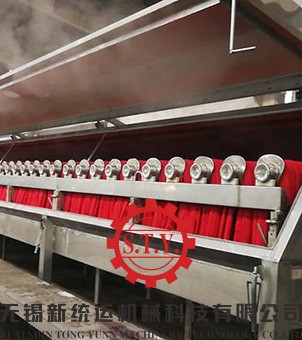

  • Transmission system for spray pipe of hank dyeing machine
  • Low-energy and high-flow water pump
  • Water level device
  • Tools for hang and take out hank yarn; Tools for brush spray pipe



OPTIONAL CONFIGURATION

  • Auto/Semi Auto control system
  • Dosing system
  • The second inflow and the second drain
  • Dyestuff tank with auto system
  • The length of spray pipe: L=1200mm/1500mm/2000mm



SPECIFICATION

SH SERIES NORMAL TEMPERATURE NORMAL PRESSURE HANK YARN DYEING MACHINE
MODEL CAPACITY(KG) NO. OF SPRAY PIPE MAIN POWER(KW)
SH-1-65 3 1 1.1
SH-2-65 7 2 1.1
SH-2-120 14 2 1.5
SH-4-120 28 4 3
SH-6-120 42 6 4
SH-10-150 100 10 5.5
SH-20-150 200 20 11
SH-30-150 300 30 18.5
SH-40-150 400 40 22
