hank dyeing machine factory
60KG spray type hank dyeing machine

Max 98℃ hank dyeing machine energy saveing smart tempensture control system

SH-5-120 stainless steel hank dyeing machine is designed for 50-60KG small batch yarn dyeing.

It is suitable for:

High-end knitting yarn manufacturer (cotton/linen/viscose and other natural fiber yarn);

Small batch customized dyeing enterprises (60kg load for 500-800kg/ day capacity);

Areas with strict environmental requirements (EU REACH regulations, ZDHC compliance enterprises);

  • Model :

    SH-5-120
  • Payment :

    T/T; LC
  • Product Origin :

    China
  • Shipping Port :

    Shanghai Port

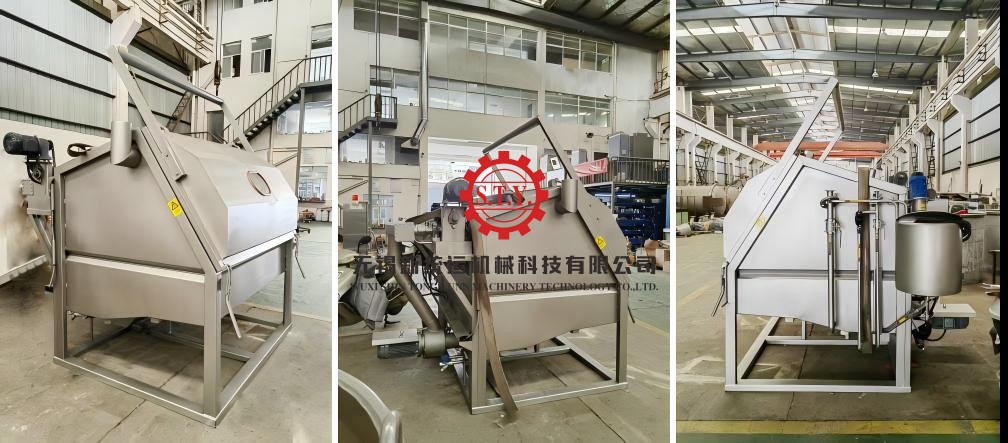

60KG hank dyeing machine

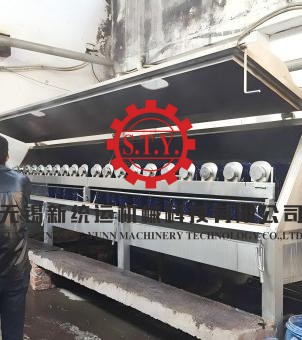

  • hank yarn dyeing machine is working
    Dyeing
    250KG hank dyeing machine is working in the knitting yarn factory around 12 years.

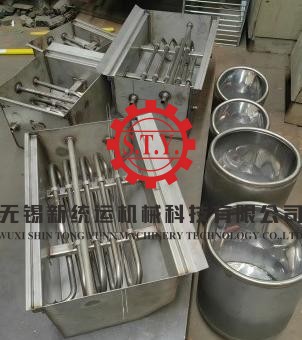

  • heating exchanger and dyestuff tank of dyeing machine
    Heating Exchanger
    Showing internal heating exchanger system and dyestuff tank.

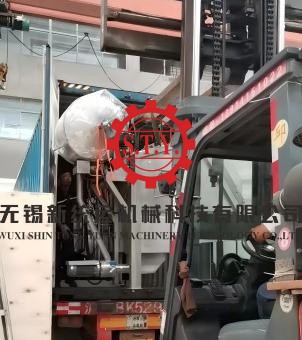

  • loading dyeing machine into container
    Loading Container
    Professional team loads container, in case hank dyeing machine being got damage.



SH-5-120 Normal Temperature Hank Dyeing Machine

50~60KG Eco-freindly small batch dyeing solution



PRODUCT FEATURE

  • Unique design water channel, reducing the water consumption, the liquor ratio can be 1:7-8 for the small batch dyeing machine.
  • Reliable yarn dyeing machine is manufactured by stainless steel 304/316L - 500H salt spray test certified, anti-corrosion.
  • SH-5-120 with smart temperature control system, controlling the dyeing temperature precisely, can preset 30+ process curves for cotton/linen/silk/blend etc.
  • Using Stereo-3D spray pipe dyeing hank yarn, ensuring uniform yarn loading density, dyeing quality was significantly improved, color difference control up to 4.5 level.



PRODUCT TYPICALLY APPLICATIO SCENARIOS

  • High-end knitting yarn dyeing: combed cotton/linen/mercerized cotton
  • Regenerated fiber yarn treatment: GRS certified recycled cotton
  • Functional yarn development: Special dyeing process for antibacterial/cool/conductive yarn
  • Fast fashion supply chain: 500-800KG/per day flexible production



FAQs

Q1: What's standard structure of normal temperature hank skein dyeing machine?

  • Main body of ambient temperature skein dyeing equipment with high quality corrosion resistant stainless steel;
  • Stainless steel 304 welding type spray pipe;
  • Large flow water pump with motor;
  • Dyestuff tank: mixing, heating, backflow, feeding;
  • Stainless steel heating exchanger (internal type);
  • Water level indicator;
  • Stainless steel electric cabinet with smart controller



Q2: What's the optional unit of hank dyeing equipment?

  • Auto control system
  • Dosing system
  • Second inflow pipe and second drain pipe
  • Dyestuff tank with auto system
  • Energy recovery system



Q3: Whether support inspection machine in factory?

Yes, sure. Make an appointment for factory site inspection. If you need visit our domestic clients' dyeing factory, pleasse also appoint with us in advance. WhatsApp +86 15995213358 +86 15995213358



SPECIFICATION

SH SERIES NORMAL TEMPERATURE NORMAL PRESSURE HANK YARN DYEING MACHINE
MODEL CAPACITY(KG) NO. OF SPRAY PIPE MAIN POWER(KW)
SH-1-65 3 1 1.1
SH-2-65 7 2 1.1
SH-2-120 14 2 1.5
SH-4-120 28 4 3
SH-6-120 42 6 4
SH-10-150 100 10 5.5
SH-20-150 200 20 11
SH-30-150 300 30 18.5
SH-40-150 400 40 22
