hank dyeing machine factory
small fiber dyeing machine

Normal pressure small capacity loose fiber dyeing machine vertical type

TYNL series fiber dyeing machine is normal temperature small fiber dyeing machine is capable for dyeing various fiber, especially for wool, cashmere, cotton, acrylic, etc.

  • Model :

    TYNL
  • Payment :

    T/T; LC
  • Product Origin :

    China
  • Shipping Port :

    Shanghai Port, China

small fiber dyeing machine

  • fiber dyeing machine
    Dyeing
    Fiber dyeing machine is working in dyeing plant.
  • loading loose fiber dyeing machine
    Export & Loading Container
    Professional team loading container for export dyeing machine. In case, getting damage during transportation.
  • package of fiber dyeing machine

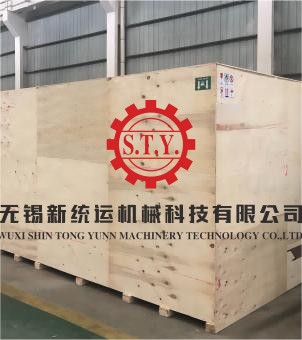

    Packing
    Sea worthy standard package, plywood box, packing electric box, spare parts and so on.

PRODUCT FEATURE

  • One time loading fiber into normal pressure fiber dyeing machine, it can do refining, bleaching, washing, dyeing, softening etc. processing.
  • Vertical fiber dyeing machine with internal heating system(stainless steel coil heating tube at the bottom of loose fiber dyeing machine).
  • TYNL fiber dyeing machine is used axial flow pump, lower power consumption, but larger flow. Ensure even dyeing.
  • Contact liquor parts, using high quality corrosion resistance stainless steel, small fiber dyeing machine with long service time.



STANDARD STRUCTURE

  • Axial flow pump with mechanical seal
  • Both direct heating and indirect heating
  • With stainless steel fiber carrier(lifting type), lifting frame and adjustable spacer



OPTIONAL CONFIGURATION

  • Dyestuff tank (with mixing system)
  • Charging pump
  • Auto/ semi auto system
  • Main pump with frequency inverter



SPECIFICATION

TYNL NORMAL TEMPERATURE LOOSE FIBER DYEING MACHINE
Model Capacity(KG) Power(KW)
TYNL-5 5 1.1
TYNL-10 10 1.5
TYNL-25 25 2.2
TYNL-50 50 2.2
TYNL-100 100 4
TYNL-175 175 5.5
TYNL-275 275 7.5
TYNL-500 500 15
TYNL-1000 1000 30
