Normal temperature small capacity 5KG loose fiber dyeing machine

TYNL normal pressure fiber dyeing machine with wide applicability, it is suitable for dyeing varioud material of fiber, especially natural fiber, such as cashmere, wool, cotton, silk, acrylic, and their blends.

  • Model :

    TYNL

  • Payment :

    T/T;LC

  • Product Origin :

    China

  • Shipping Port :

    Shanghai Port, China
Inquiry now

normal pressure loose fiber dyeing machine

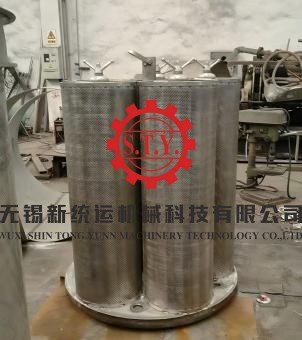

  • carrier of fiber dyeing machine
    Fiber Carrier
    This stainless steel carrier is designed for loose fiber.
  • carrier of top
    Top Carrier
    This type carrier is designed for dyeing tops.
  • loading fiber dyeing machine into container
    Load & Export
    Profrssional team loading container, in case damage.

PRODUCT FEATURE

  • Loose fiber dyeing machine can complete multiple finishing and dyeing processes, including scouring, bleaching, dyeing and softening, once loading, significantly improving production efficiency.
  • Equipped with high-efficiency built-in heat exchanger and axial flow pump, ensuring uniform and adjustable dye liquor flow, thereby guaranteeing uniform and consistent dyeing result.
  • Fiber dyeing machine with spacer and adjustable pressure plates enable the machine to flexibly handle different production capacity.
  • Parts of dyeing machine contact with dyeing liquor, which is used high quality corrosion resistance stainless steel.



PRODUCT STRUCTURE

  • Axial flow pump with mechanical seal
  • Both direct heating and indirect heating
  • With stainless steel fiber carrier(lifting type), lifting frame and adjustable spacer



OPTIONAL CONFIGURATION

  • Dyestuff tank (with mixing system)
  • Charging pump
  • Auto/ semi auto system
  • Main pump with frequency inverter
  • Second carrier



SPECIFICATION

TYNL NORMAL TEMPERATURE LOOSE FIBER DYEING MACHINE
Model Capacity(KG) Power(KW)
TYNL-5 5 1.1
TYNL-10 10 1.5
TYNL-25 25 2.2
TYNL-50 50 2.2
TYNL-100 100 4
TYNL-175 175 5.5
TYNL-275 275 7.5
TYNL-500 500 15
TYNL-1000 1000 30
