hank dyeing machine factory
small capacity hank dyeing machine

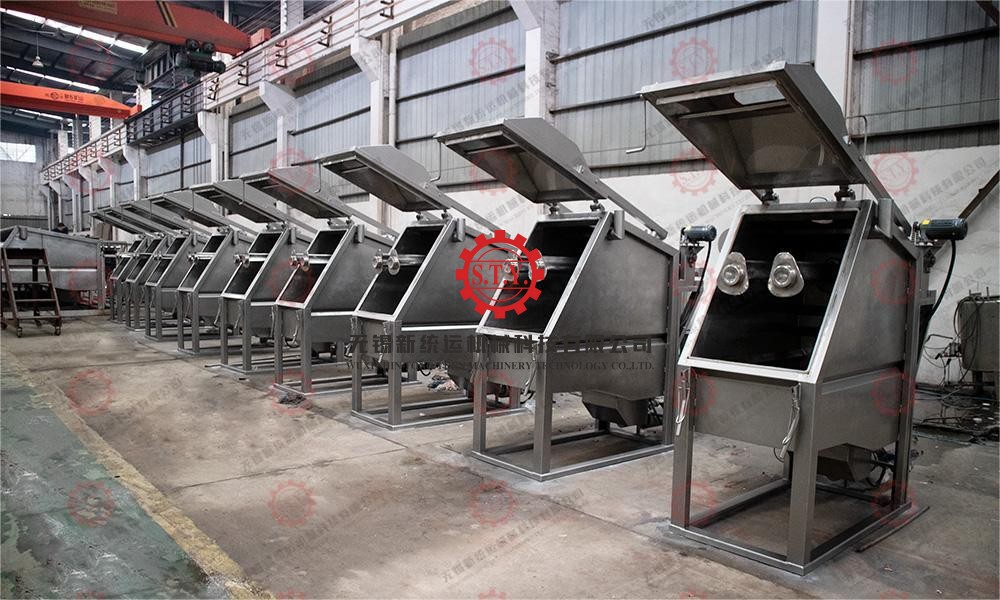

Normal temperature spray type small capacity skein sample hank yarn dyeing machine

SH-1 Normal temperature hank dyeing machine is suitable for dyeing sample yarn before volume-produce. It is capable for dyeing cotton, acrylic, silk, rayon, viscose, single fine yarn, blended yarn and so on.

  • Model :

    SH-1
  • Payment :

    T/T; LC
  • Product Origin :

    China
  • Shipping Port :

    Shanghai Port, China

hank yarn dyeing machine

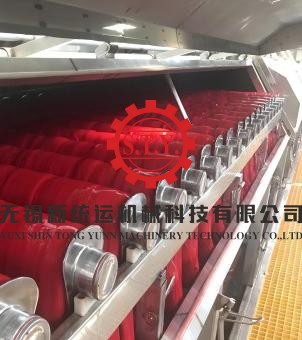

  • hank yarn dyeing process
    Dyeing
    Hank yarn dyeing machine is working in cutsomer's factory in good condition.

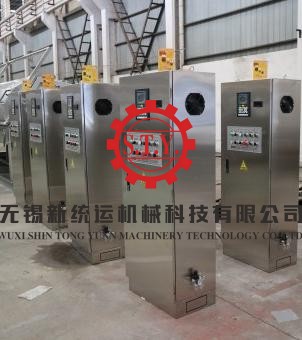

  • electric box of hank dyeing machine
    Electrical Cabinet
    The electrical cabinet of small hank dyeing machine is completely same with big one.

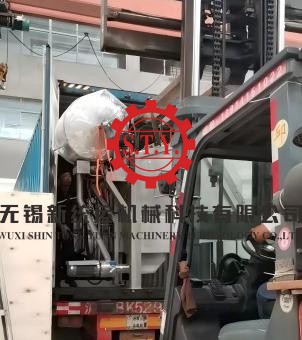

  • loading hank yarn dyeing machine
    Loading Container
    Professional team loading container, in case getting damage during shipment.

PRODUCT FEATURE

  • SH-1-65 small hank yarn dyeing machine can do bleaching, refining, dyeing, washing, softening and so on.
  • Normal pressure hank dyeing machine use mixed flow pump, lower energy consumption, but large flowing. When the machine under high temperature, the water quantity still be enough, ensure the dyeing quality.
  • The weir flow type jet tube integrates the functions of spraying liquid, turning yarn and shifting into a whole, avoiding the twisting and knotting phenomenon of Hank yarn, and the dyeing loss is very low.
  • The main pump of spray skein dyeing machine is equipped with frequency inverter, can adjust water quantity.



STANDARD STRUCTURE

  • All the parts contacting dye liquor are made of high quality corrosion resistance stainless steel.
  • New design spray pipe.
  • High efficient drive system of spray pipe.
  • Dyestuff tank: mxing, heating, cleaning, adding dyestuff
  • High efficient heating exchanger.
  • Water level showing device,
  • Tools for loading and unloading yarn.
  • Brush for cleaning spray pipe.



OPTIONAL CONFIGURATION

  • Auto/ semi auto system
  • Dosing system
  • Second dyestuff tank
  • Second inflow, second drain
  • Auto system of dyestiff tank



SPECIFICATION

SH SERIES NORMAL TEMPERATURE NORMAL PRESSURE HANK YARN DYEING MACHINE
MODEL CAPACITY(KG) NO. OF SPRAY PIPE MAIN POWER(KW)
SH-1-65 3 1 1.1
SH-2-65 7 2 1.1
SH-2-120 14 2 1.5
SH-4-120 28 4 3
SH-6-120 42 6 4
SH-10-150 100 10 5.5
SH-20-150 200 20 11
SH-30-150 300 30 18.5
SH-40-150 400 40 22
