/ Home /Cone Yarn Dyeing Machine /10KG high pressure vertical steam heating small package yarn dyeing machine
small package yarn dyeing machine

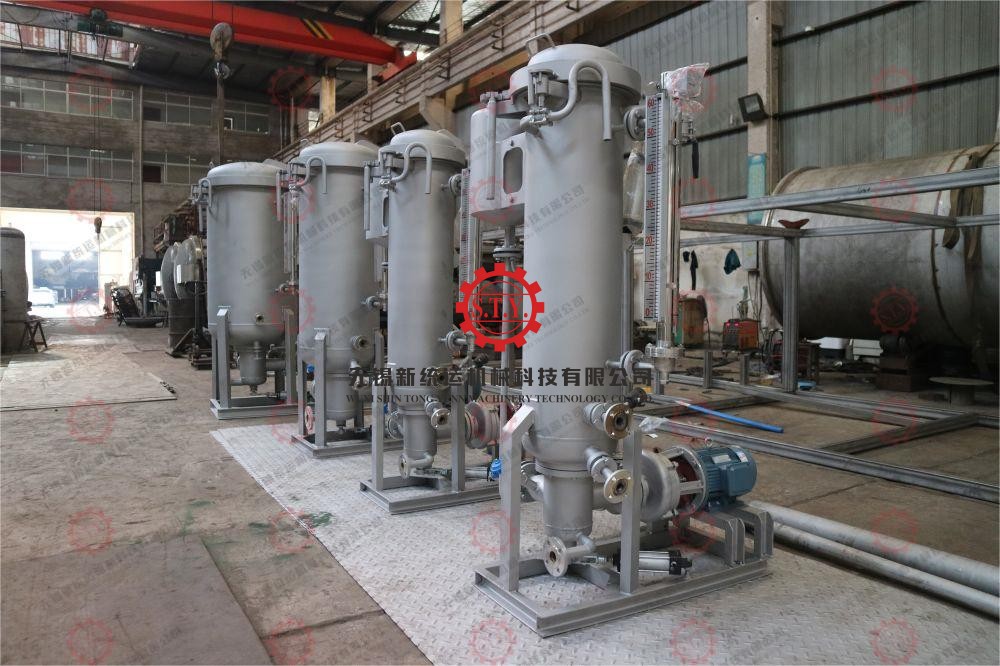

10KG high pressure vertical steam heating small package yarn dyeing machine

DF241A series high temperature high pressure cheese dyeing machine are widly used in textile industry for dyeing process, particularly suitable for dyeing polyester and its blended yarn under high temperature condition. As well as cotton, linen, acrylic, wool, etc. under normal temperature or high temperature condition.

  • Model :

    DF241A

  • Payment :

    T/T; LC

  • Product Origin :

    China

  • Shipping Port :

    Shanghai Port, China
Inquiry now

polyester cheese yarn dyeing machine

  • package yarn dyeing machine
    Dyeing
    Cone dyeing machine is running at good condition in dyeing factory.
  • loading container

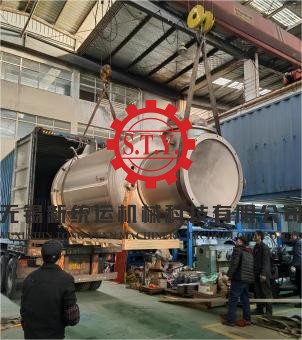

    Export & Loading
    Professional team loading container, incase get damage during transportation.
  • packing

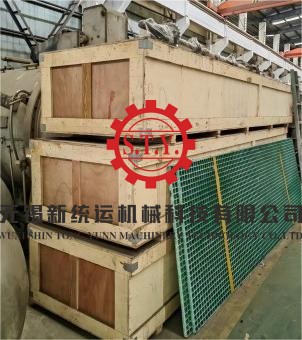

    Packing
    Standard sea worthy package, plywood box packing electrical cabinet, spare parts and so on.

PRODUCT FEATURE

  • High pressure cone dyeing machine uses efficient and energy saving design, such as internal high-efficiency tube heat exchanger and innovative pump, enhancing heat exchanger efficiency and energy utilization.
  • Low liquor ratio design 1:6-8 significantly reduce consumption of dyestuff, steam, water and waste water discharge, decrease production cost.
  • Package yarn dyeing machine is equipped the frequency inverter for main pump, enabling stepless flow control and synchornizing the dyeing requirements according to process cruve, improving production efficiency and stability.
  •  Features unique and reliable reversing devices and flow reverse technology, ensuring main pump dosen't pause during running processing, increseing circulation frequency and improving dyeing stability and uniformity.



PRODUCT STRUCTURE

  • All liquor-carring main parts are used stainless steel 316L.
  • Main pump motor with frequency inverter.
  • High-efficient stainless steel pump.
  • Complete one set cone yarn carrier.
  • 90° pipe type reversing direction reverser.
  • Internal heating exchanger system.
  • Dyestuff tank: mixing, drain, heating, adding dystuff.
  • Pressure relief device/system.
  • Stainless steel electrical cabinet with advanced computer.



OPTIONAL CONFIGURATION

  • Semi auto/ auto system
  • Equal volume standby water tank with direct heating system
  • Second inflow and second drain system
  • Second set cone yarn carrier
  • Second dyestuff tank with auto/semi auto control system



SPECIFICATION

DF241A HIGH TEMPERATURE HIGH PRESSURE PACKAGE YARN DYEING MACHINE
MODEL SPINDLE X LAYER NO. OF PACKAGES MAIN POWER(KW)
DF241-21 1 X (3-5) 3-5 2.2
DF241- 40 3 X 4 12 3.7
DF241- 43 4 X 4 16 5.5
DF241- 43 4 X 5 20 5.5
DF241- 53 6 X 5 30 7.5
DF241- 75 12 X 6 72 11
DF241- 85 18 X 6 108 15
DF241- 85 18 X 7 126 15
DF241- 90 19 X 8 152 18.5
DF241- 110
 28 X 8 224 22
DF241- 120
 36 X 7 252 22
DF241- 120
 36 X 8 288 30
DF241- 130
 39 X 9 351 37
DF241- 140 46 X 9 414 37
DF241- 160
 62 X 9 558 55
DF241- 170
 69 X 10 690 55
DF241- 186
 90 X 10 900 75
DF241- 200
 108 X10 1080 90
DF241- 200
 108 X 11 1188 90
DF241- 200
 125 X 11 1375 110
