high pressure cone yarn dyeing machine

High temperature sample cone yarn dyeing machine small capacity lab use

DF241 series combined high temperature package yarn dyeing machine is suitable for textile school for teaching, dyeing factory fo doing sample before big production and so on.



  • Model :

    DF241-1X4

  • Payment :

    T/T; LC

  • Product Origin :

    China

  • Shipping Port :

    Shanghai Port, China
Inquiry now

high pressure cone yarn dyeing machine

  • high pressure cone dyeing machine
    Testing Dyeing Machine
    Test dyeing machine before shipment, ensure running normally.
  • loading container
    Export & Loading Container
    Professional team loading container, in case damaging during transportation.

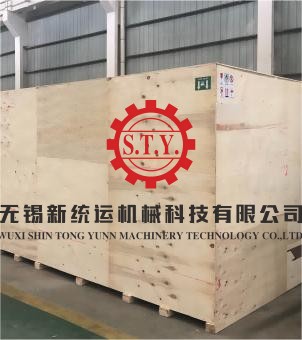

  • Packing
    Sea freight standard package, plywood box, packing electrical cabinet, spare parts and so on.

PRODUCT FEATURE

  • DF241 series HTHP package yarn sample dyeing machine  can be used for teaching in textile school; It is suitable for dyeing sample before big production in dyeing factory.
  • It is can do dyeing, before-tretment, after-treatment and so on.
  • High pressure package yarn dyeing machine is mainly for dyeing polyester, but also can dyeing cotton, hemp, acylic, wool and so on.



STANDARD STRUCTURE

  • Main body material is SUS316, high-temperature resistance, corrosion resistance, acid and alkali resistance sealing ring.
  • Electrical box and equipment integration.
  • Pressure relief valve.
  • Safety lock system.



OPTIONAL CONFIGURATION

  • Auto/semi auto system
  • Dyestuff tank
  • Dosing system
  • Capacity: 1 pcs/ 2 pcs/ 3 pcs/ 5 pcs package yarn



SPECIFICATION

DF241 HIGH TEMPERATURE HIGH PRESSURE PACKAGE YARN DYEING MACHINE
MODEL SPINDLE X LAYER NO. OF PACKAGES MAIN POWER(KW)
DF241-21 1 X (3-5) 3-5 2.2
DF241- 40 3 X 4 12 3.7
DF241- 43 4 X 4 16 5.5
DF241- 43 4 X 5 20 5.5
DF241- 53 6 X 5 30 7.5
DF241- 75 12 X 6 72 11
DF241- 85 18 X 6 108 15
DF241- 85 18 X 7 126 15
DF241- 90 19 X 8 152 18.5
DF241- 110
 28 X 8 224 22
DF241- 120
 36 X 7 252 22
DF241- 120
 36 X 8 288 30
DF241- 130
 39 X 9 351 37
DF241- 140 46 X 9 414 37
DF241- 160
 62 X 9 558 55
DF241- 170
 69 X 10 690 55
DF241- 186
 90 X 10 900 75
DF241- 200
 108 X10 1080 90
DF241- 200
 108 X 11 1188 90
DF241- 200
 125 X 11 1375 110
