Automatic pure cotton high pressure package yarn dyeing machine

DF241B series high temperature bobbin yarn dyeing machine with automatic dyeing system.

  • Model :

    DF241B

  • Payment :

    T/T;LC

  • Product Origin :

    China

  • Shipping Port :

    Shanghai Port, China
Inquiry now
high pressure cheese yarn dyeing machine

PRODUCT FEATURE

DF241B automatic high pressure package yarn dyeing machine is internal heating exchanger system, lower the liquor ratio.

Pressure dehydration function shorten the dyeing processing.

This type high temperature cone yarn dyeing machine is equipped with Intelligent water washing function, save water.

  • package yarn dyeing machine
    Dyeing

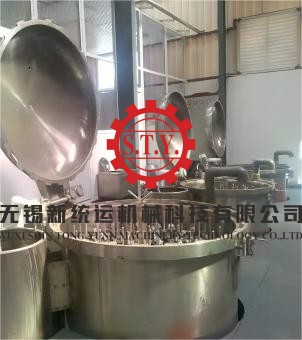

    High pressure bobbin yarn dyeing machine is running in good condition at cilent's dyeing plant.
  • cone yarn dyeing machine

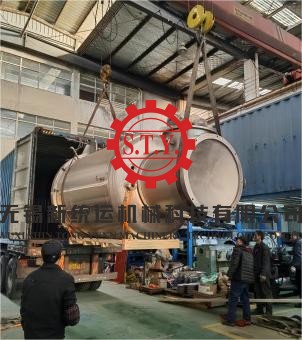

    Export & Loading Container
    Professional team loading container, in case damaging during transpotation.
  • #

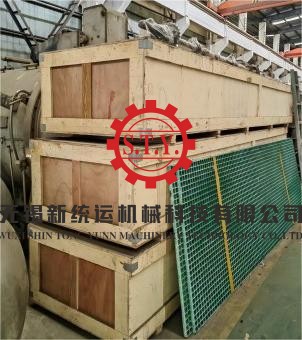

    Packing
    Sea freight standard package, plywood box, packing electrical cabinet, spare parts and so on

STANDARD STRUCTURE

  • All liquor-carring main parts are used stainless steel 316L.
  • Max working pressure: 0.44 Mpa
  • Max. working temperature: 140℃
  • Heating rate: 20-130℃ around 30mins (saturated vapor pressure 0.7Mpa)
  • Cooling rate: 130-80℃ around 20mins (cooling water pressure 0.3Mpa)
  • The Dia. of spindle is 48mm
  • Outer Dia. of bobbin is 165mm, height of bobbin is 160mm, max. weight can be calculate as 1KG per bobbin yarn.
  • Complete one set cone yarn carrier.
  • 180° plate type reversiing direction reverser.
  • Dyestuff tank: mixing, heating, drain, adding dystuff.
  • Stainless steel electrical cabinet with PLC and advanced computer.



OPTIONAL CONFIGURATION

  • Various kinds of carrier (fiber, top, hank yarn, cone yarn, beam, zipper)
  • Hot temperature drain
  • Progressive dosing system
  • Unloading device
  • Equal volume standby water tank with direct heating system
  • Second dyestuff tank



SPECIFICATION

DF241B HIGH TEMPERATURE HIGH PRESSURE PACKAGE YARN DYEING MACHINE
MODEL SPINDLE X LAYER NO. OF PACKAGES MAIN POWER(KW)
DF241-21 1 X (3-5) 3-5 2.2
DF241- 40 3 X 4 12 3.7
DF241- 43 4 X 4 16 5.5
DF241- 43 4 X 5 20 5.5
DF241- 53 6 X 5 30 7.5
DF241- 75 12 X 6 72 11
DF241- 85 18 X 6 108 15
DF241- 85 18 X 7 126 15
DF241- 90 19 X 8 152 18.5
DF241- 110
 28 X 8 224 22
DF241- 120
 36 X 7 252 22
DF241- 120
 36 X 8 288 30
DF241- 130
 39 X 9 351 37
DF241- 140 46 X 9 414 37
DF241- 160
 62 X 9 558 55
DF241- 170
 69 X 10 690 55
DF241- 186
 90 X 10 900 75
DF241- 200
 108 X10 1080 90
DF241- 200
 108 X 11 1188 90
DF241- 200
 125 X 11 1375 110
